Multi Head Embroidery Machine
Discover the artistry of precision with our Multi Head Machine. Craft intricate ribbed patterns effortlessly. Elevate your creations with luxurious scarf fringes and stylish hat bands. Explore limitless possibilities, whether you’re a seasoned artisan or a budding enthusiast. Unlock your creativity with ease.
Discover the Multi Head Embroidery Machine

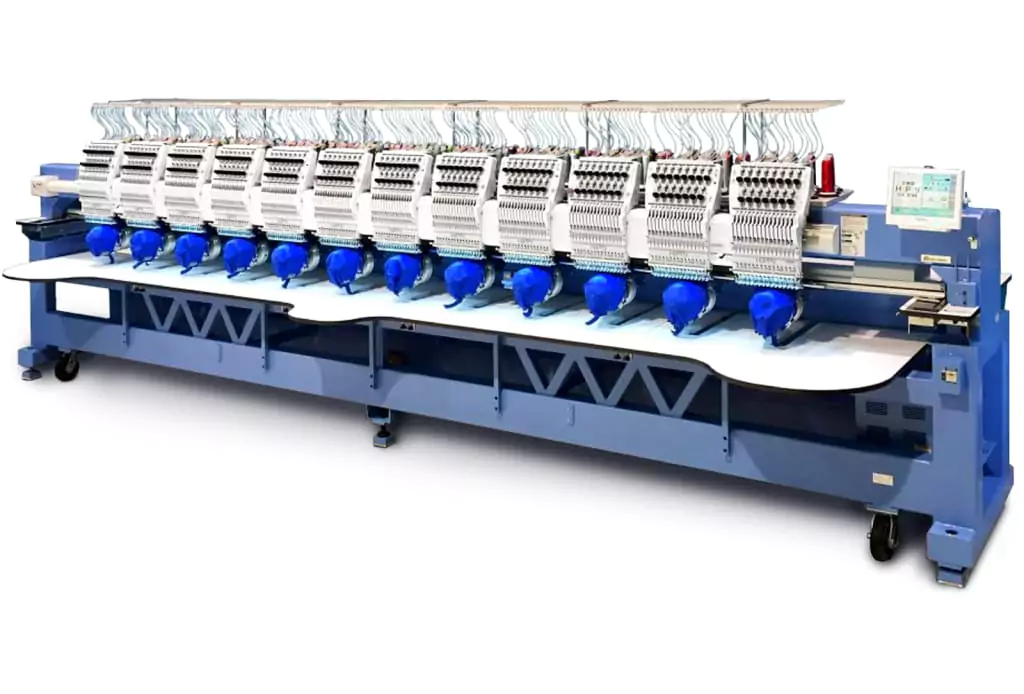

Introducing the PBG Multi Head Embroidery Machine – a cutting-edge solution designed to revolutionize your embroidery projects. With its Multi head capability and expansive 400*450mm embroidery area, this machine offers unparalleled efficiency and versatility. Equipped with high-speed features like a 1200 RPM rate and advanced technology such as a Raynen computer with custom digitization, it ensures precision and speed in every stitch.
Whether you’re embroidering caps, garments, or flat surfaces, this machine delivers exceptional results, supported by its seamless operation and user-friendly interface. From its original Japanese components to its Italian belts and centralized frame drive system, every detail is crafted for performance and durability. With the PBG 12X, elevate your embroidery game to new heights of excellence.
specifications -
| Model | PBG 12X |
| Head | Multi Head |
| Embroidery Area | 400*450mm |
| Needles | 12 Needles |
| Computer | Raynen latest model with custom digitization |
| Speed | High Speed 1200 RPM |
| Voltage | Single-phase 110V-220V or 380V 50/60 HZ |
| Machine Head | High Speed Double Cam double lever driving system |
| Thread Gripper | High Speed TAJIMA Type Tension Box |
| Oil | Semi-auto Oiling Lubrication system |
| Main Motor | High speed servo motor |
| Hook | Original Japanese rotary hooks and bobbin cases |
| Belt | Original Italian belt with high speed latest Aluminum |
| Liner Guide Rail Drive System | Yes |
| Bearing | Original Japanese bearing and screw |
| Screen | 10 inches Touch screen |
| Color Change System | High speed Automatic motor type color changing system |
| Trim | Automatic trimming with Taiwan fixed and movable Mega cutter |
| Stop | With emergency switch |
| Functions | Suitable for cap ready garment flat embroidery etc. |
| Supported Languages | Chinese, English, Spanish, Portuguese, Turkish, Russian, French, Arabic, German, Polish, Italian, and more |
| Embroidery Test | Embroidery can preview the pattern and embroidery track, and can display the running process of stitch in real-time |
| About Machine |
|
| Operation |
|
| Pattern Format | DST, EMB format |
| Import Pattern | USB driver |
| Thread Device | There is an independent solenoid valve control unit in the thread device, which can effectively prevent the thread from falling off |
| Weight / CBM | 1500 kgs / 6.6 cbm |
| Machine Size | 5450*1150*1050mm |
